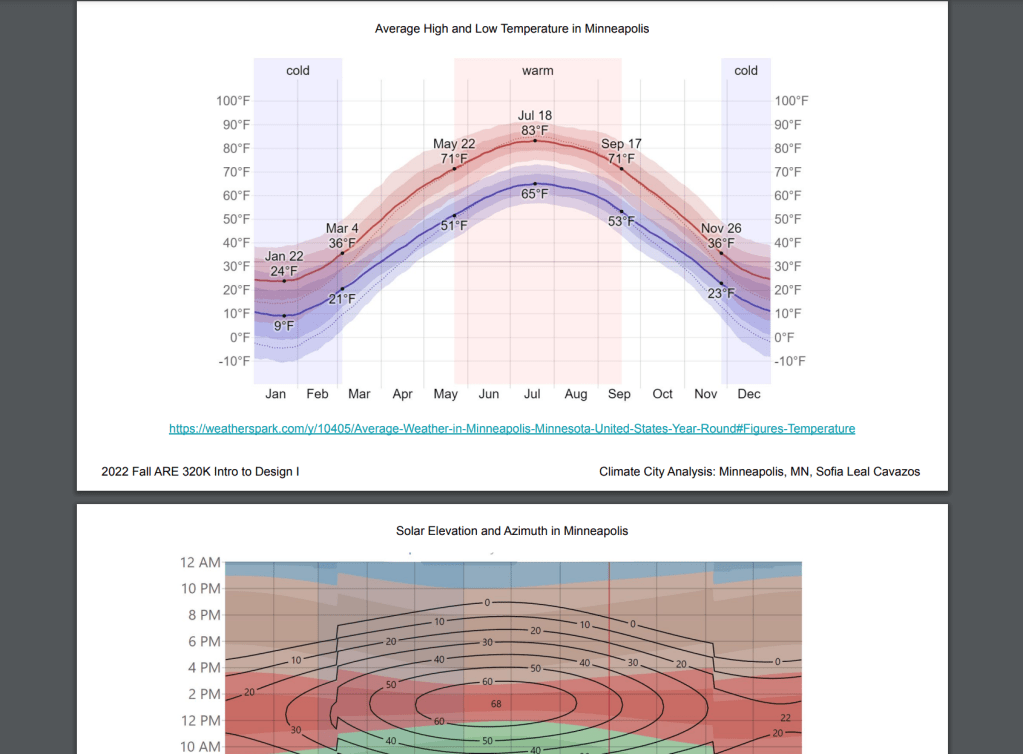

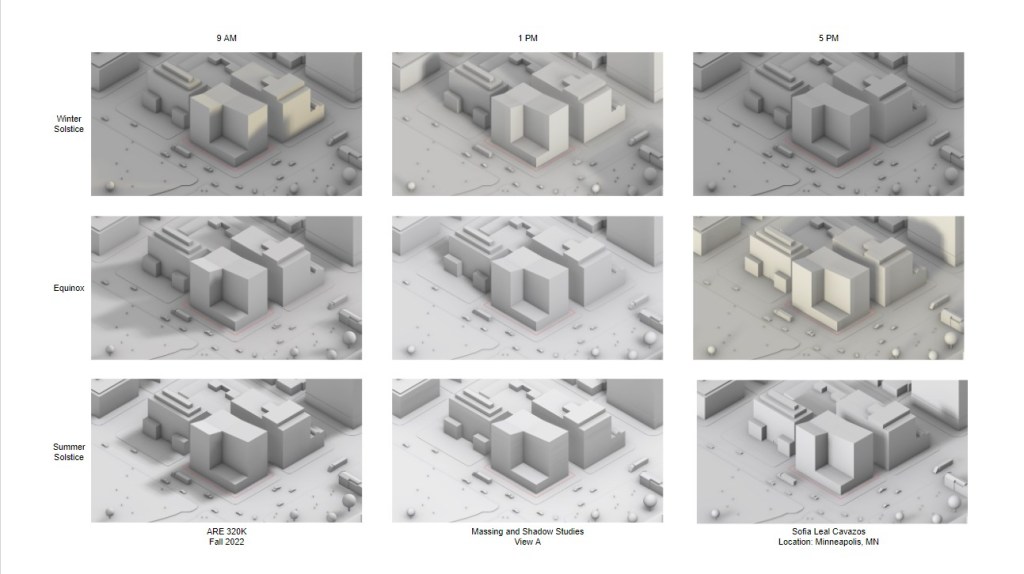

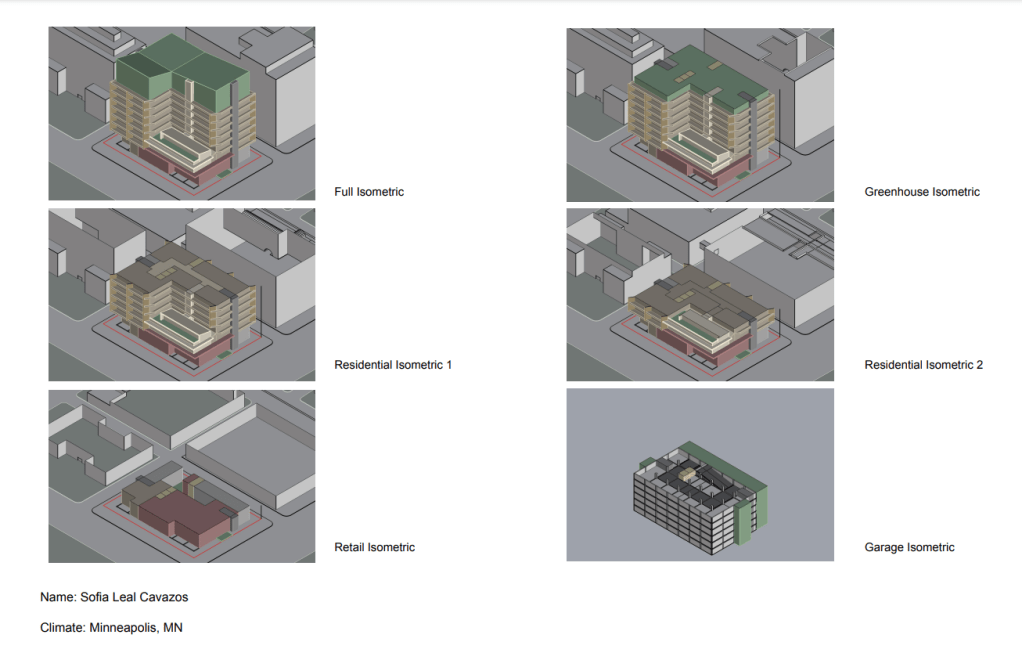

ARE 320K & ARE 320L Pin-Up Space

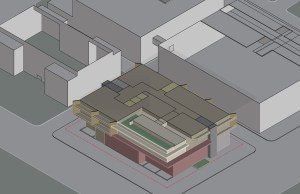

Below is a representation of the amenity space.

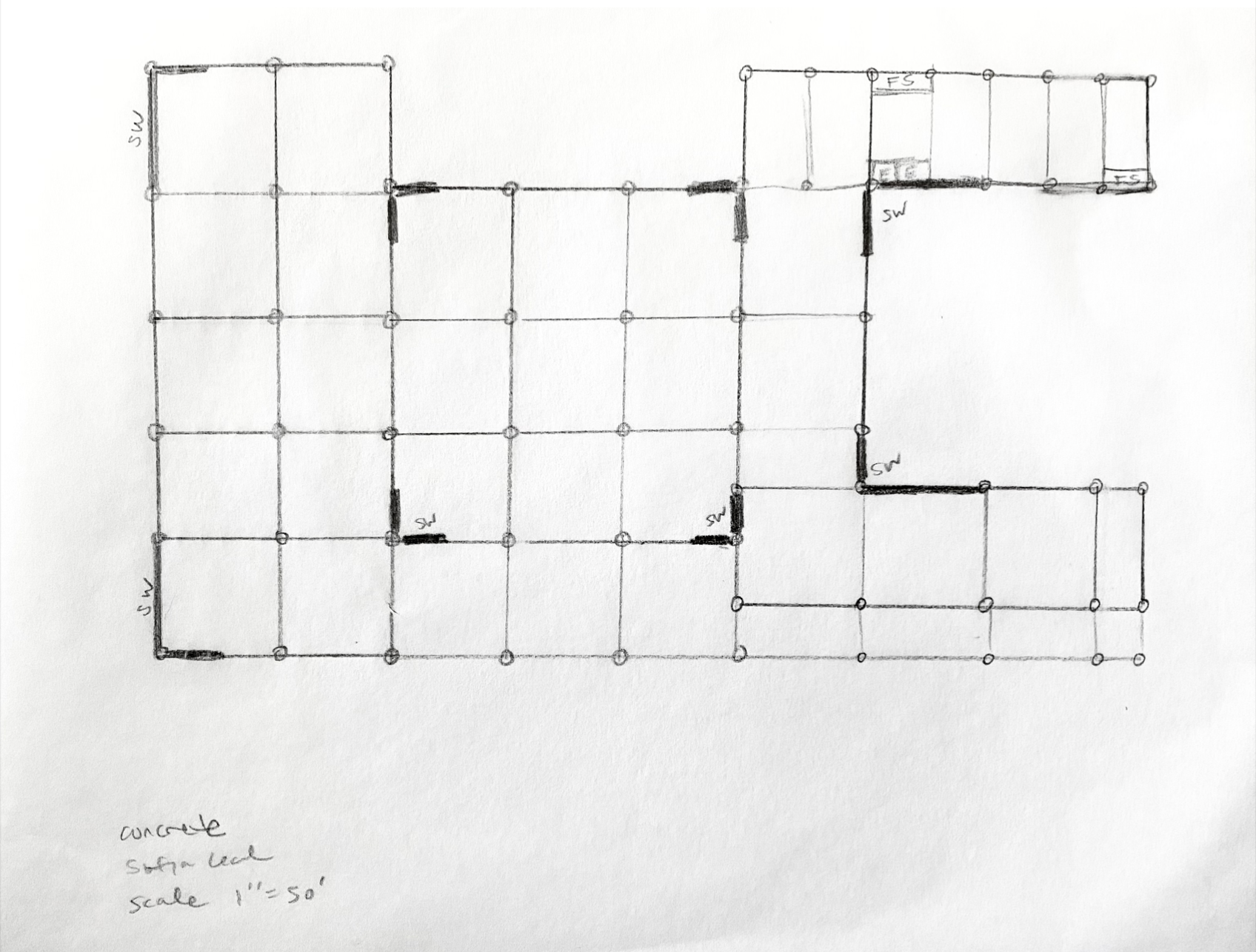

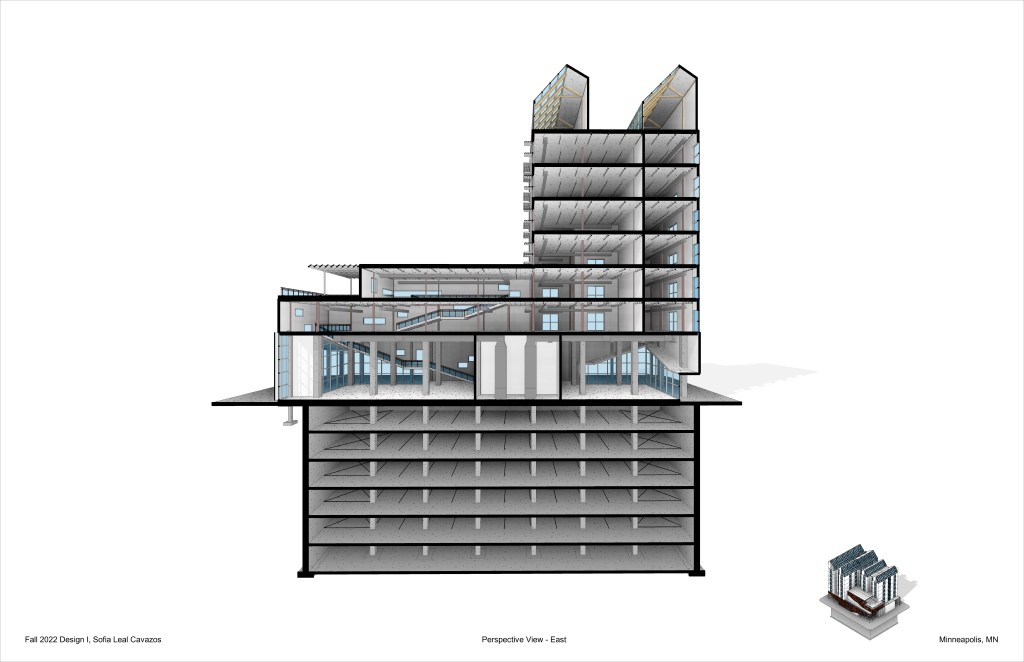

The simplified structural system helps emphasize the distinct spaces and their vertical relationship.
The graphic was developed on Procreate, a digital drawing app.

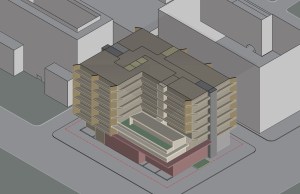

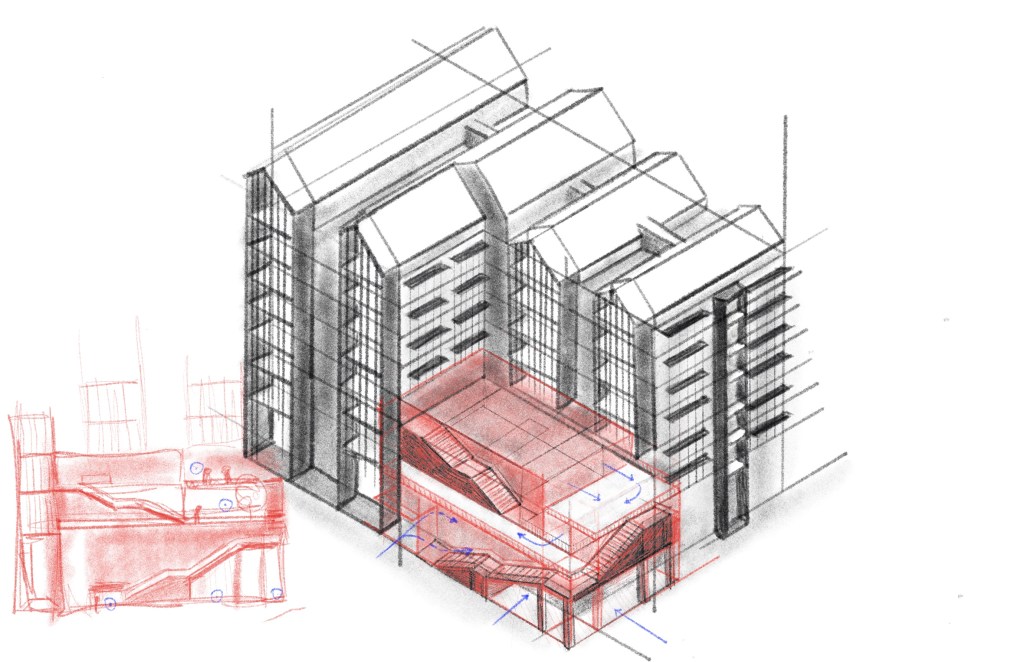

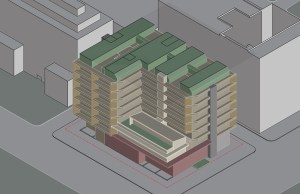

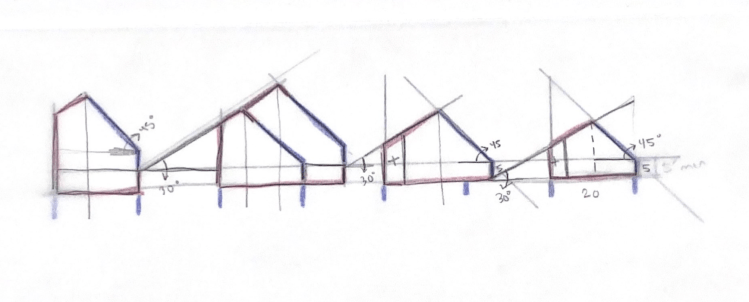

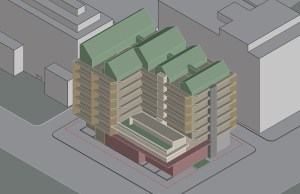

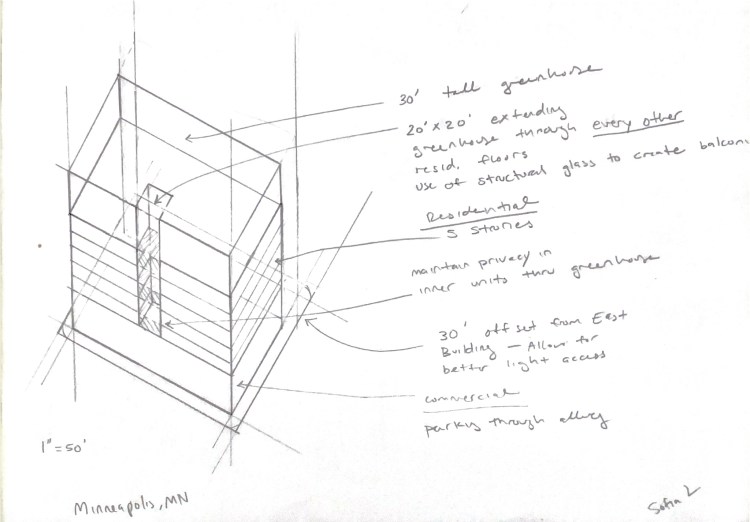

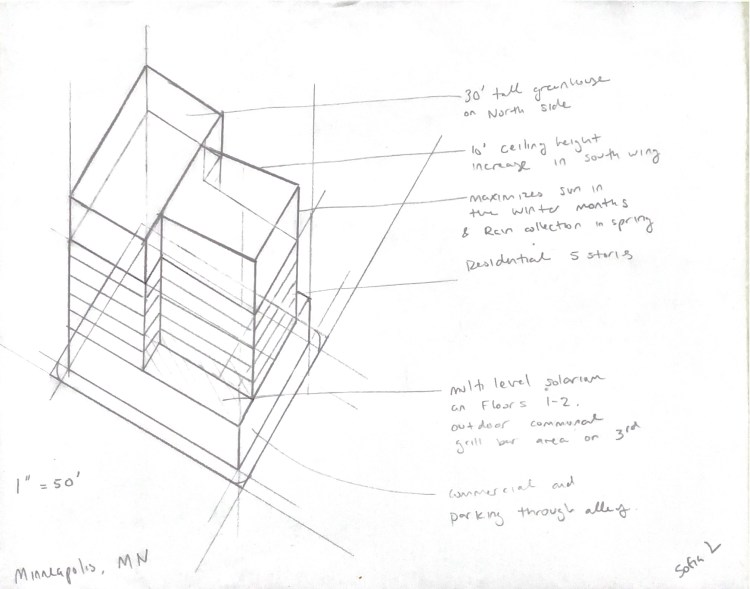

Below is a series of sketches showing the progression of the commercial space, as well as changes to the balcony design that emphasize vertical movement and celebrate the greenhouse mass above.

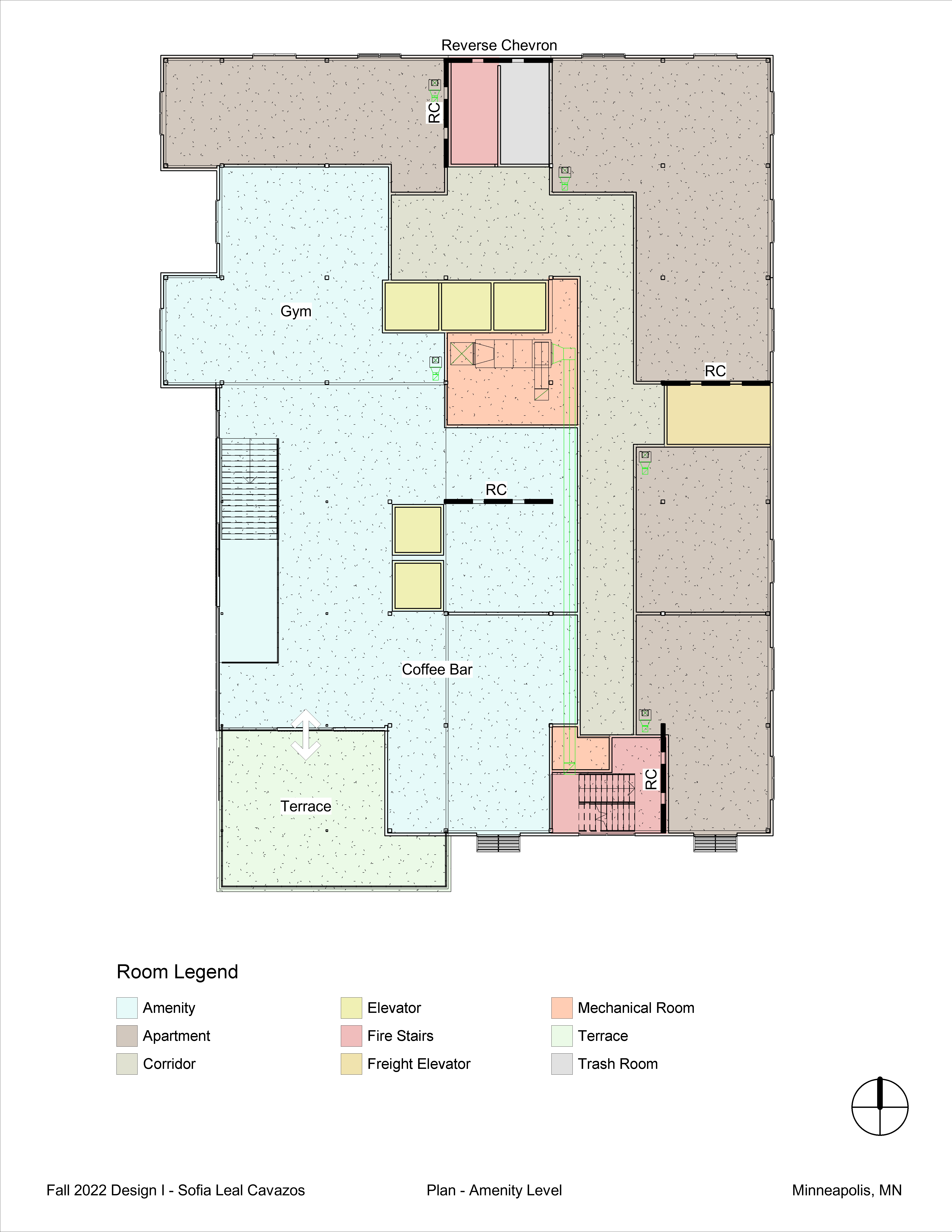

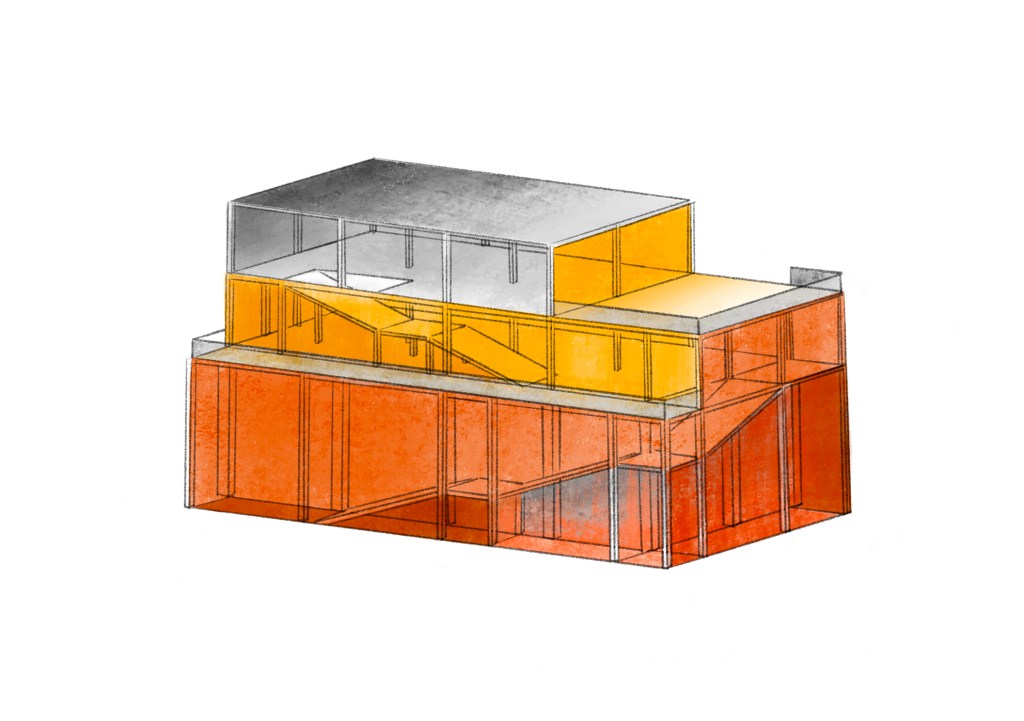

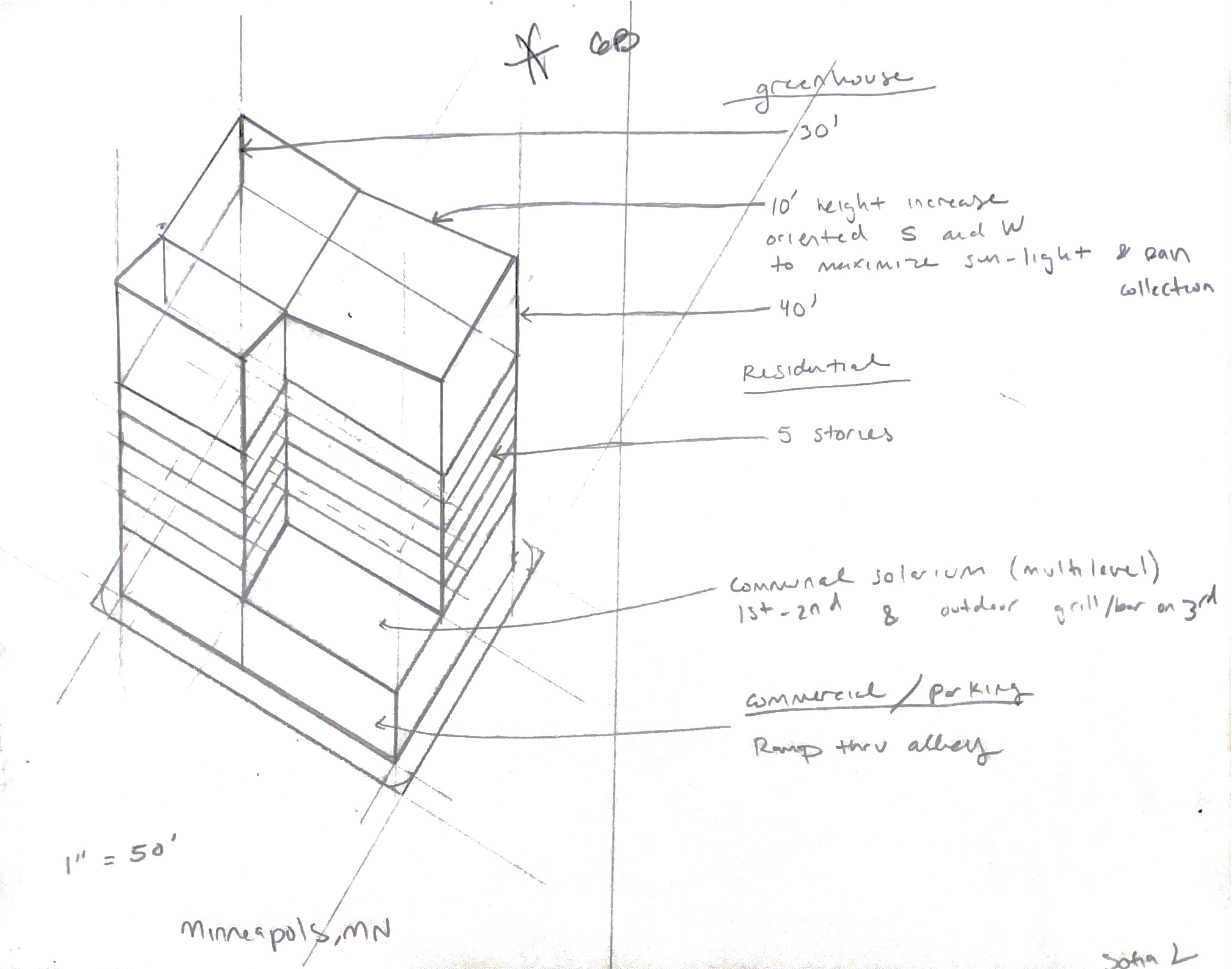

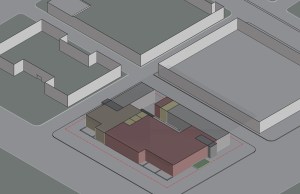

The commercial/amenity space can be visualized as three stacked volumes, each being smaller than the last. The ground floor commercial space, and largest volume, has entrances denoted by the blue arrows. The subsequent two volumes hold the amenity space, and the difference in volume creates two terraces spanning the West and South sides.

The sketches were produced on Procreate, a digital illustration app.

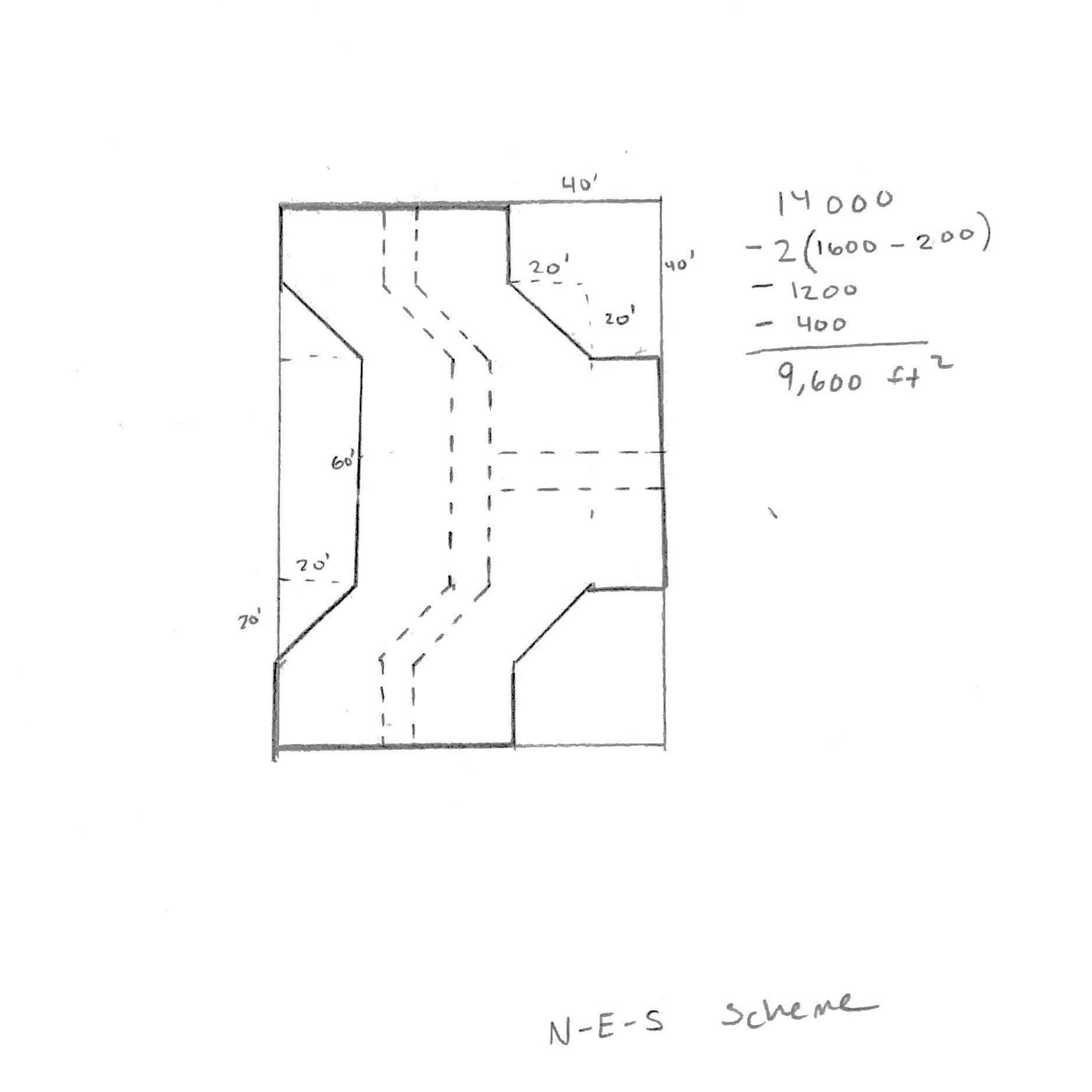

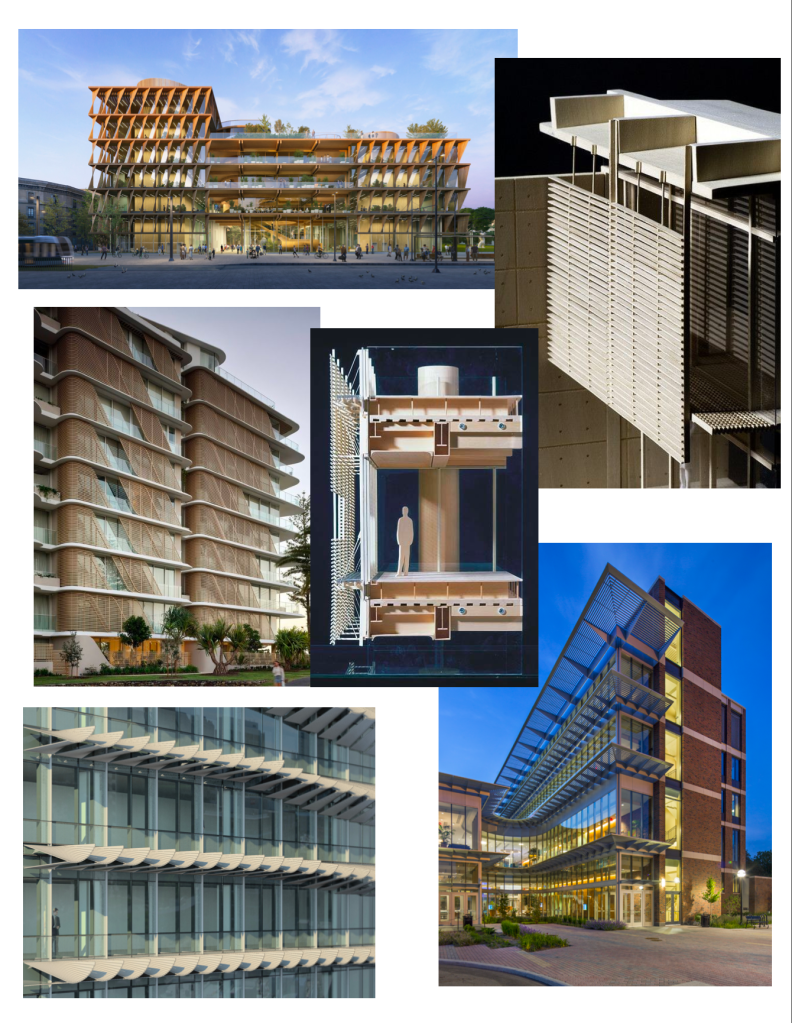

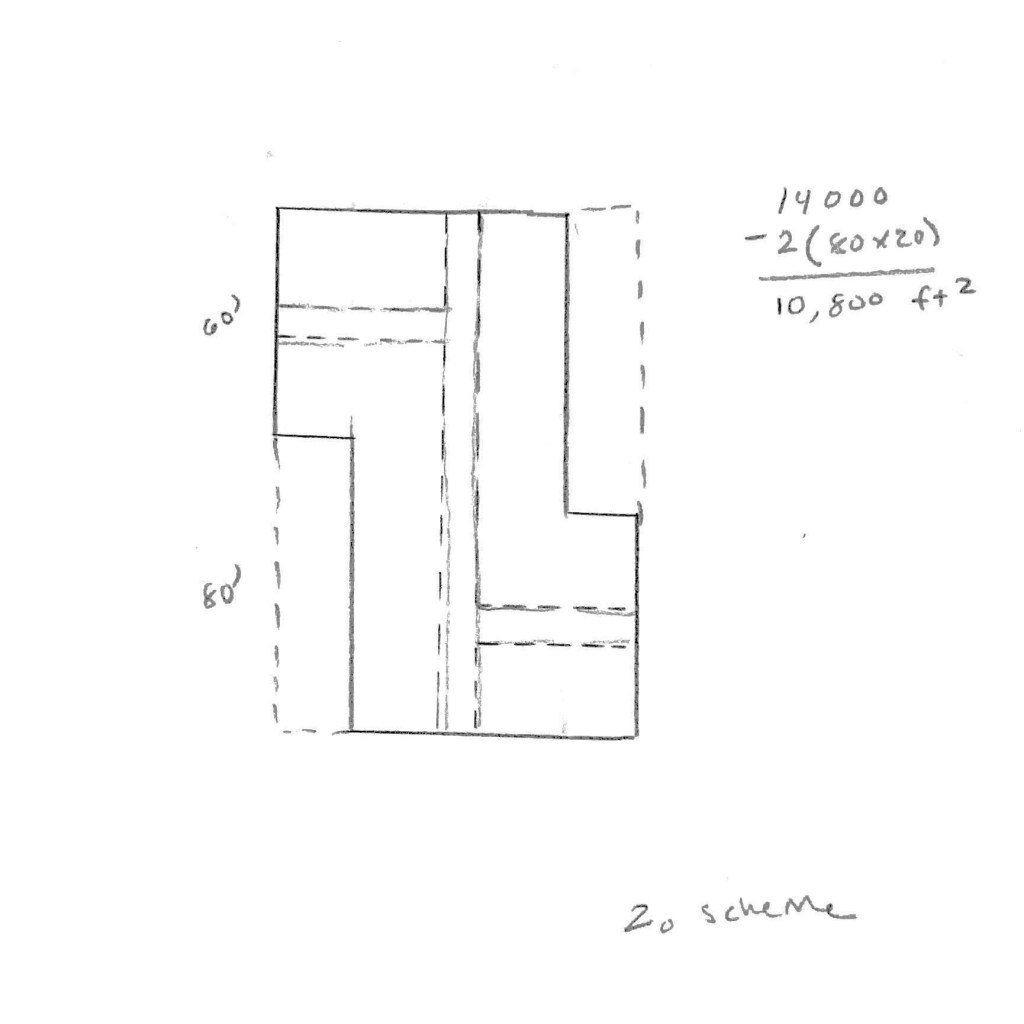

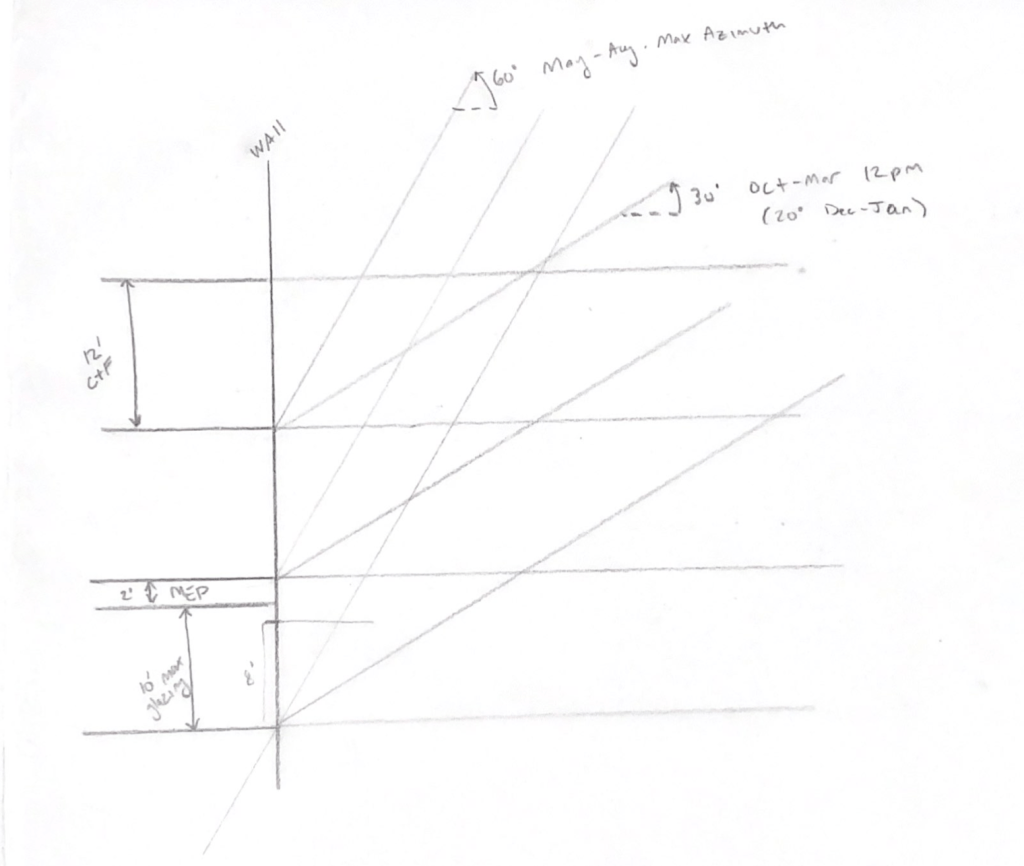

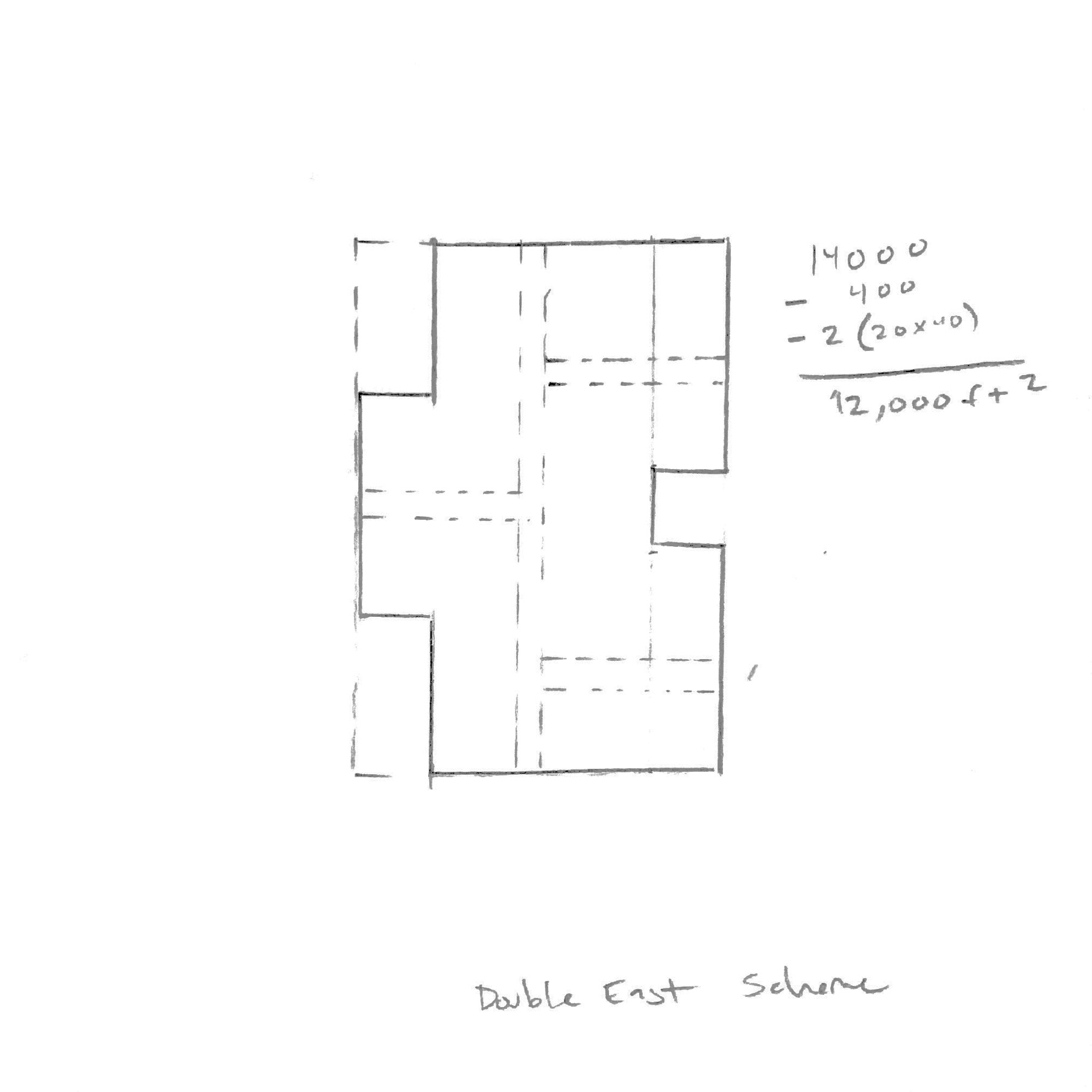

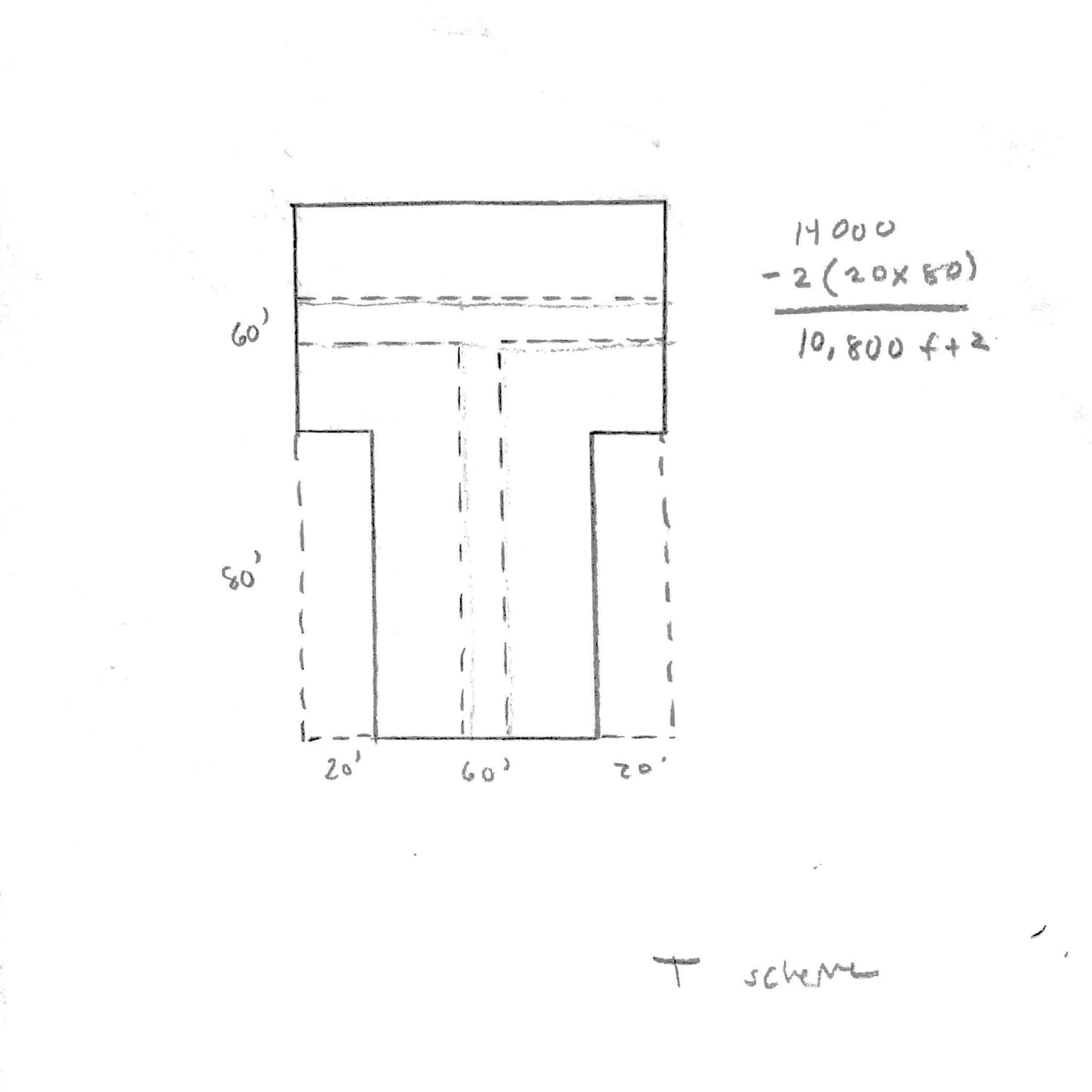

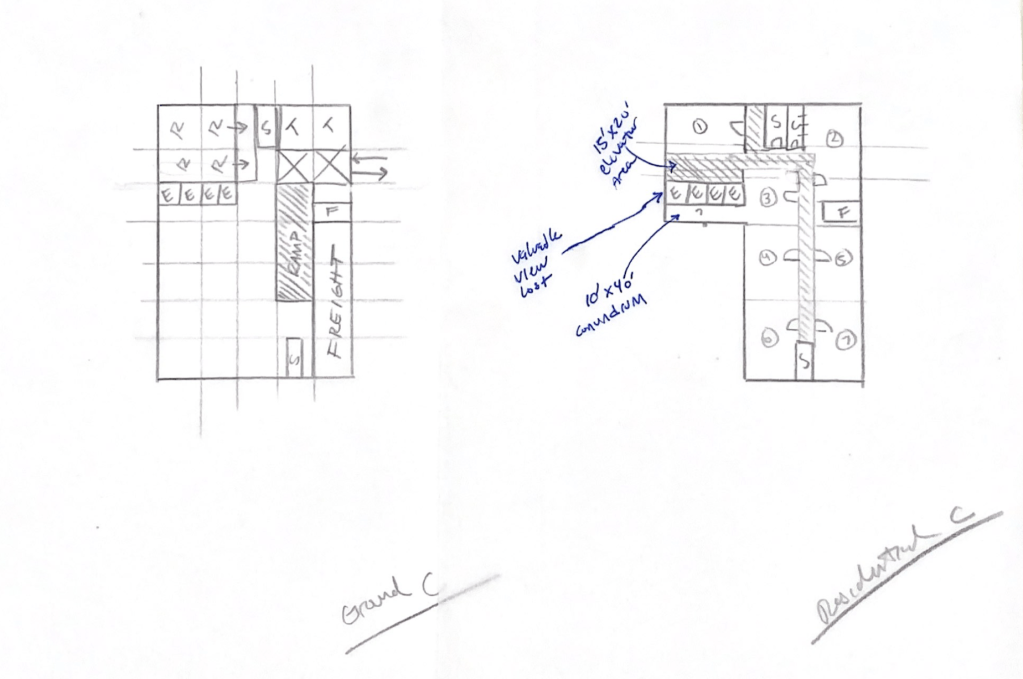

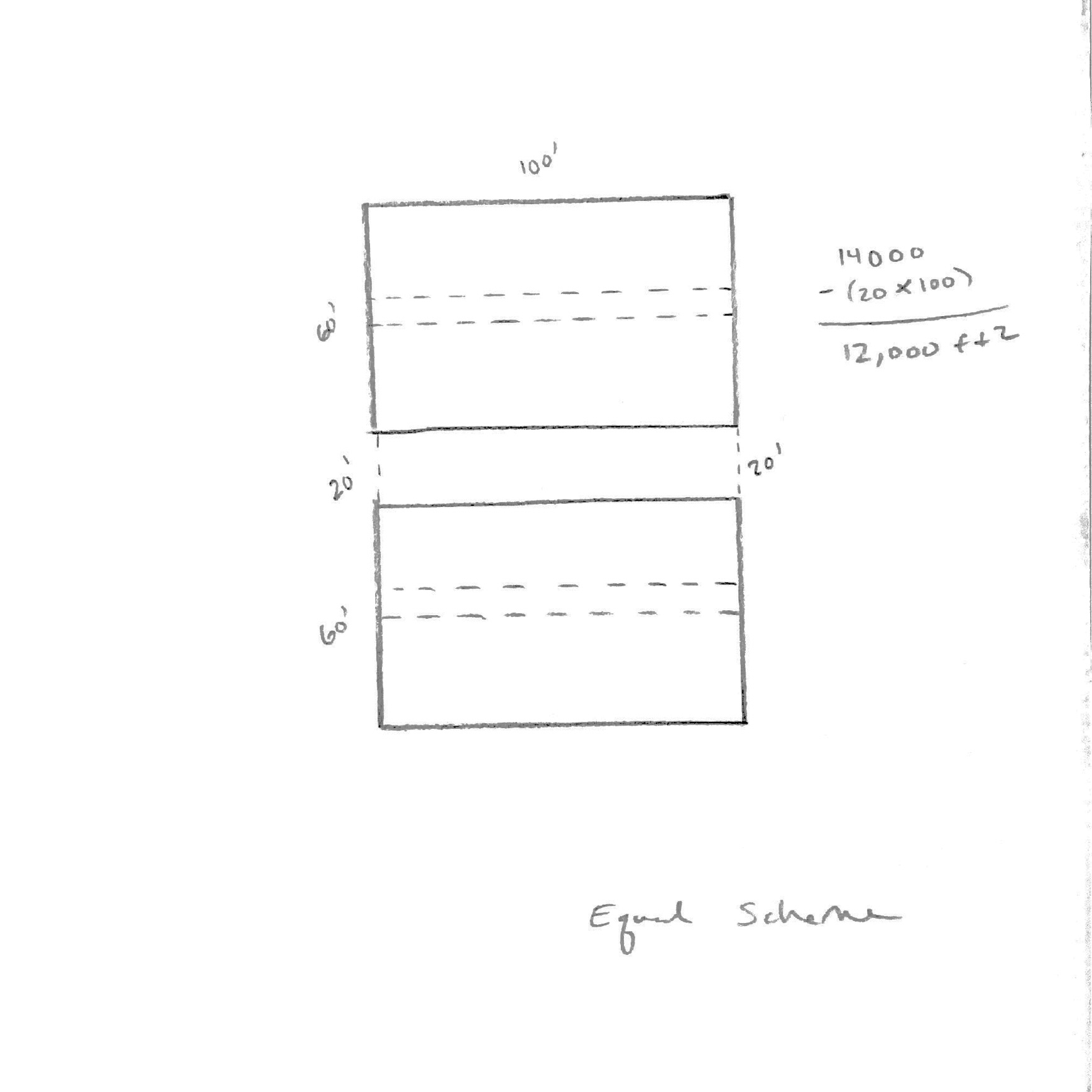

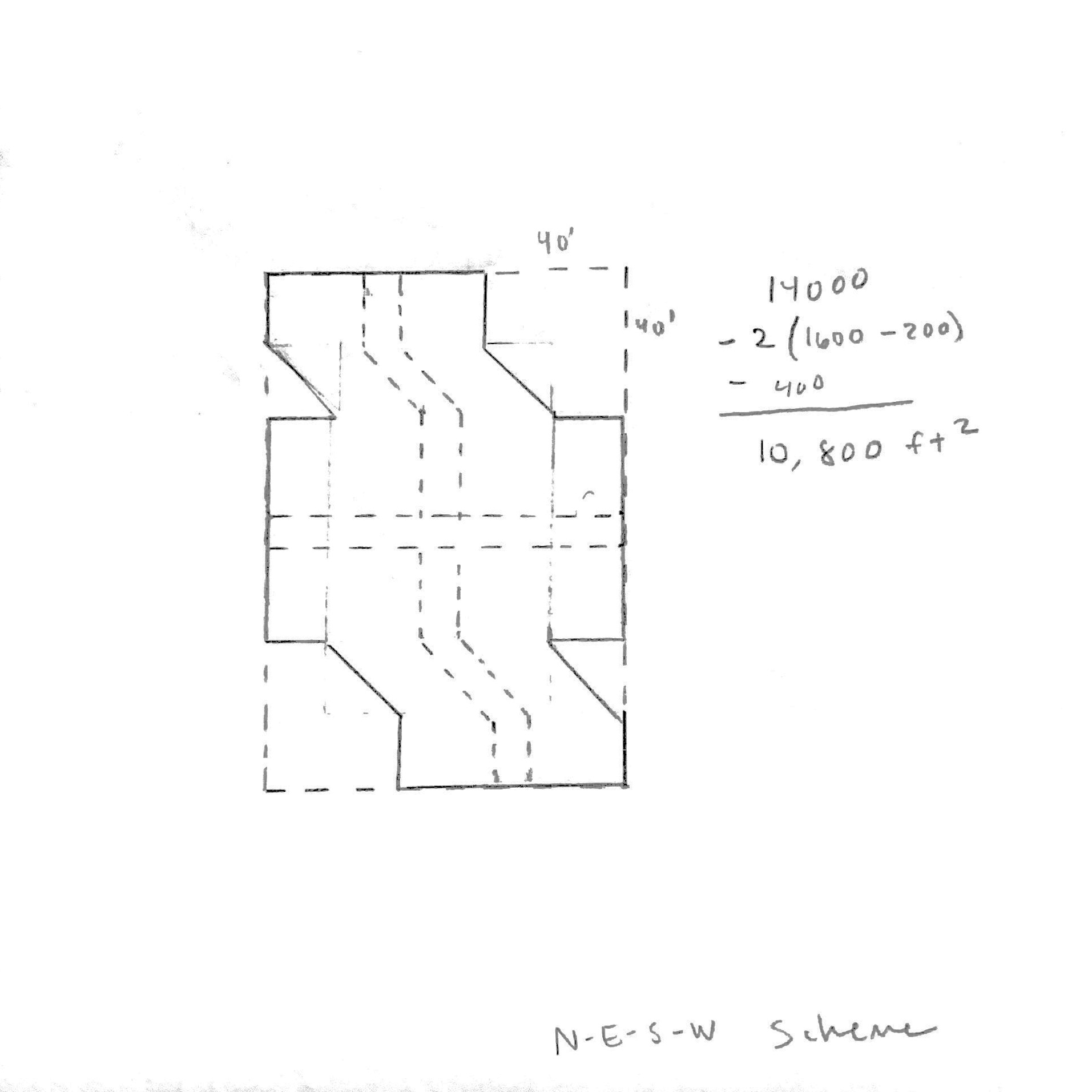

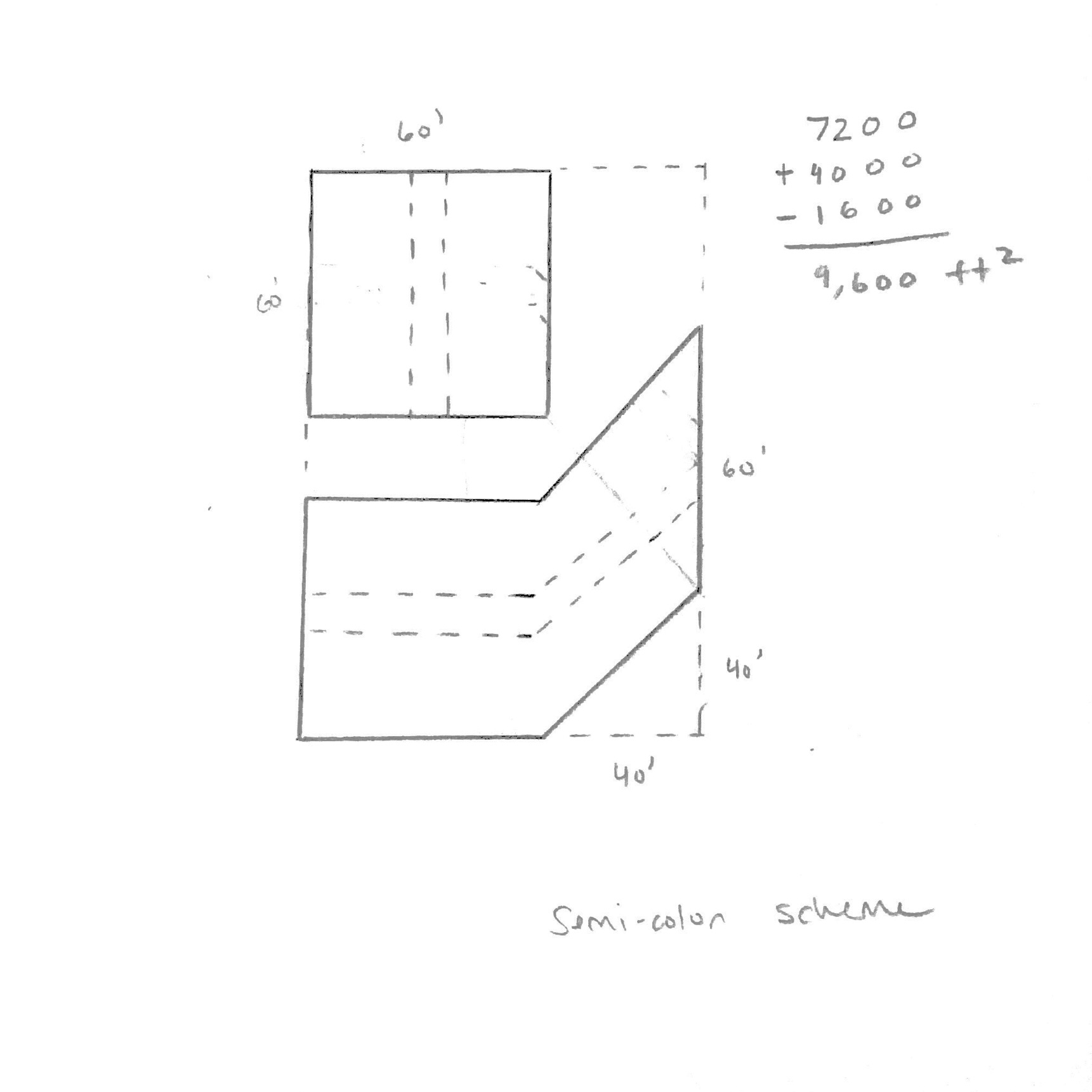

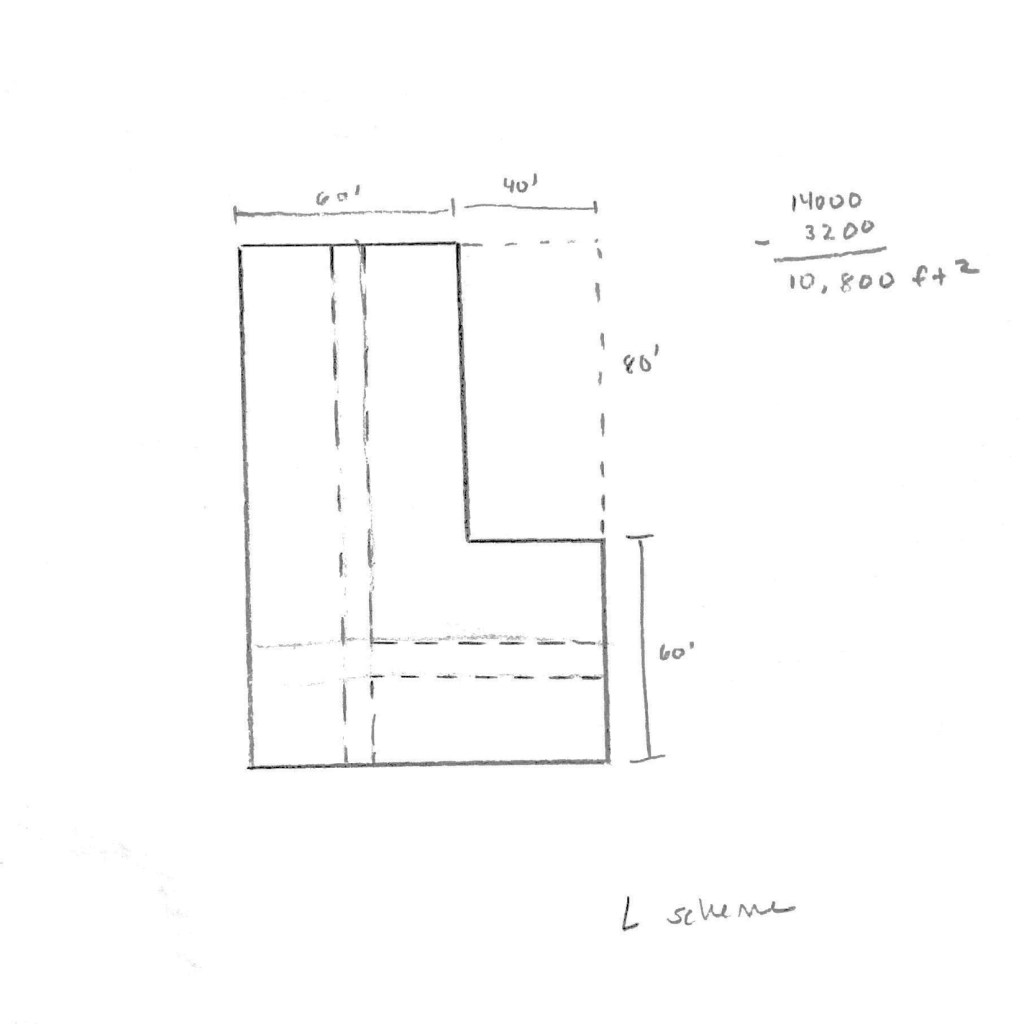

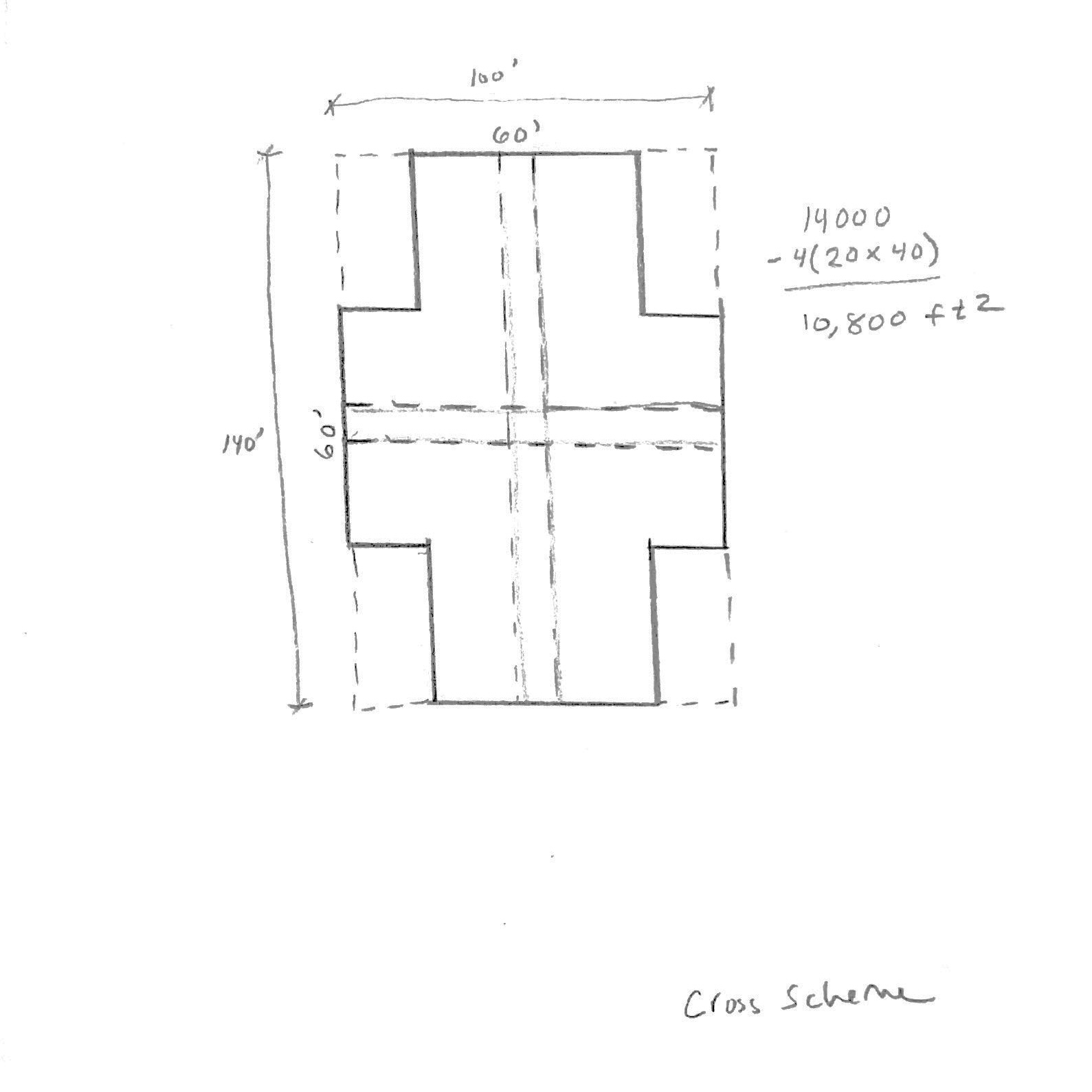

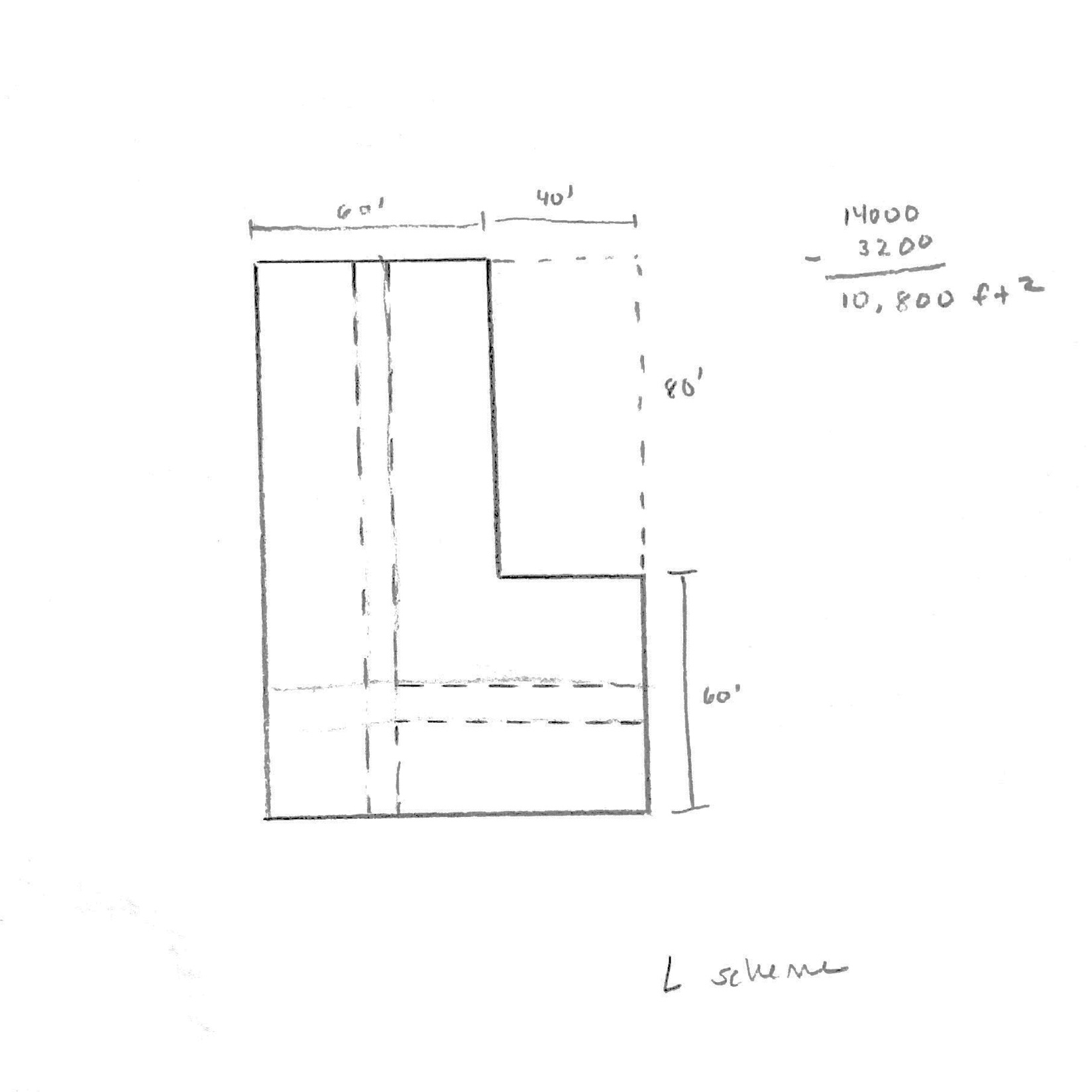

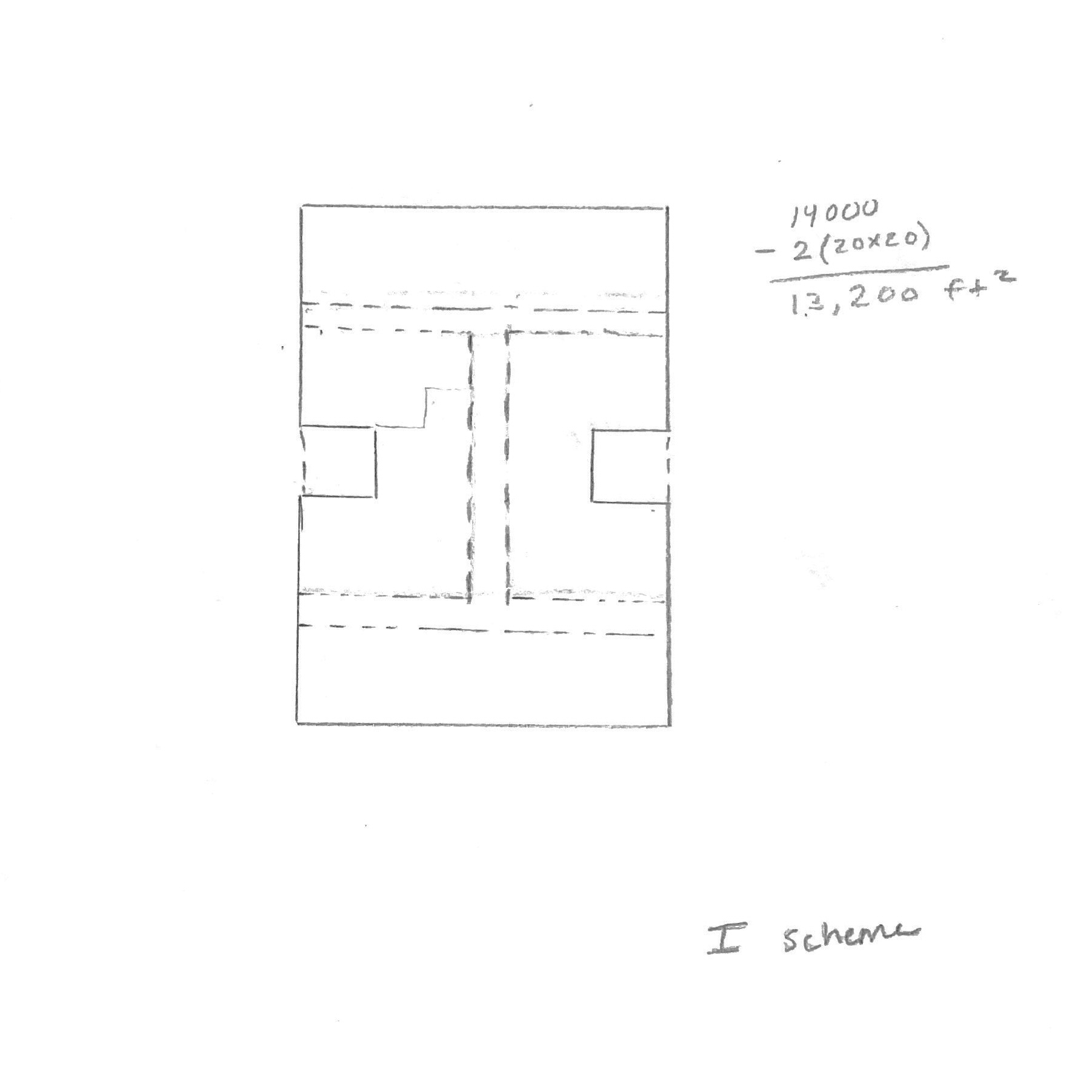

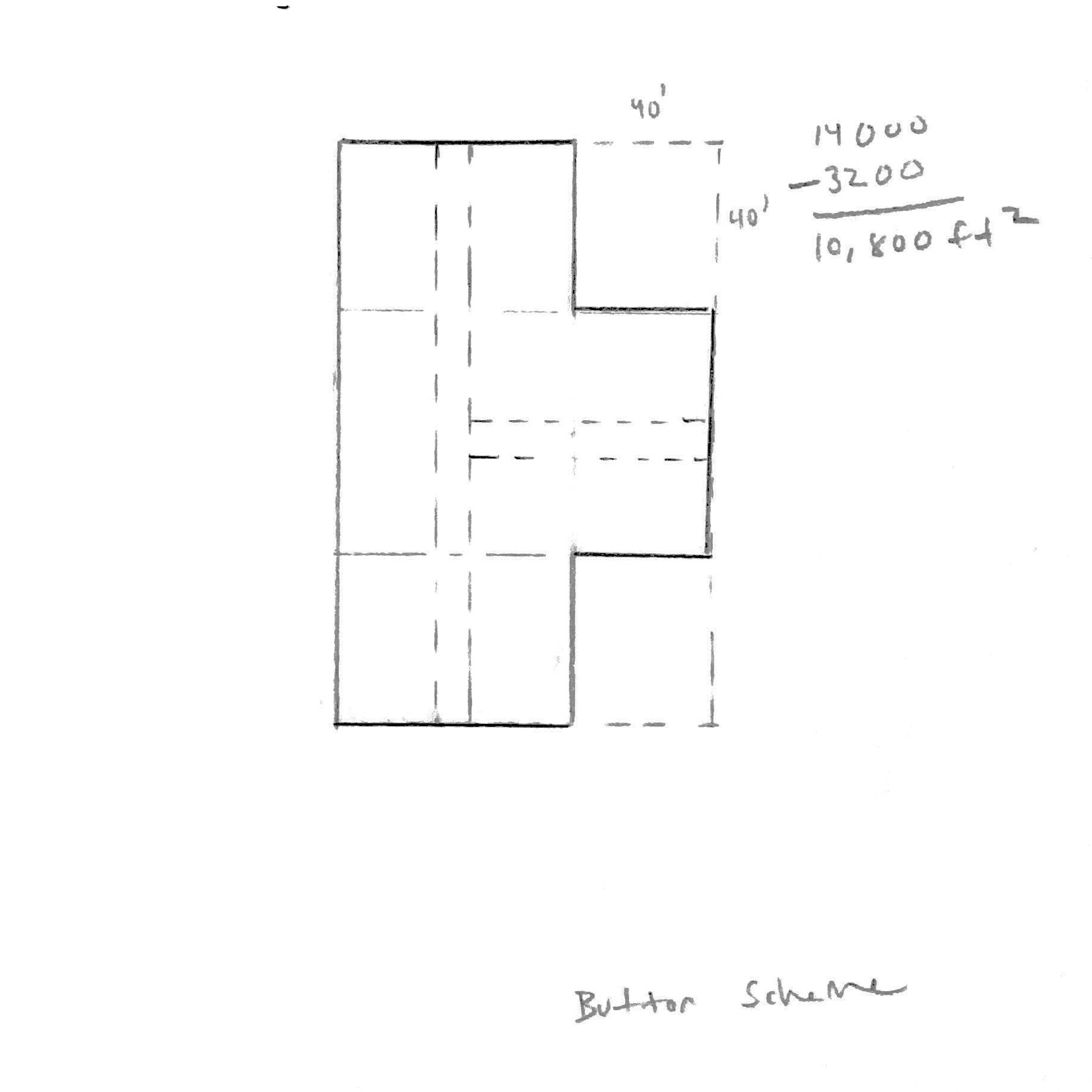

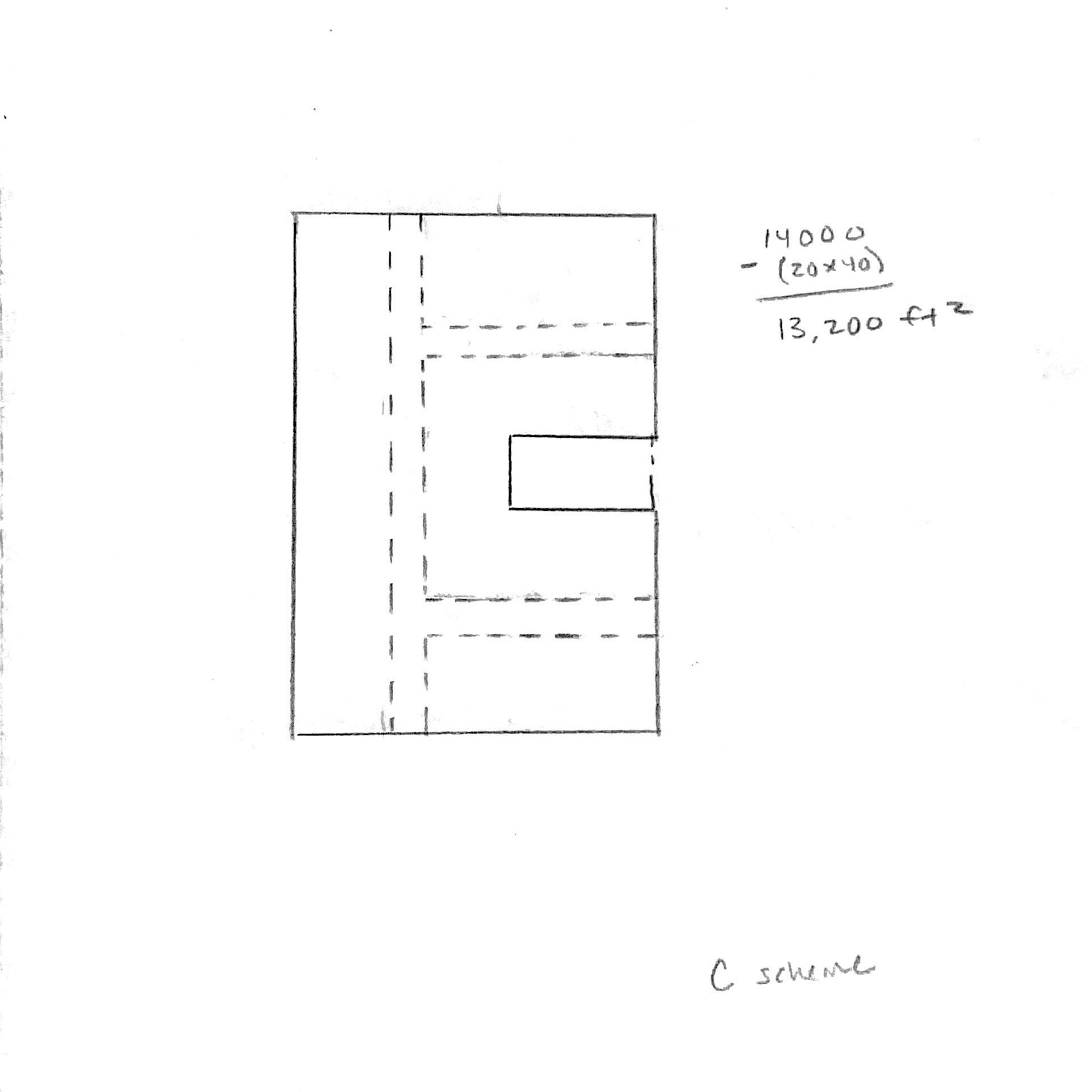

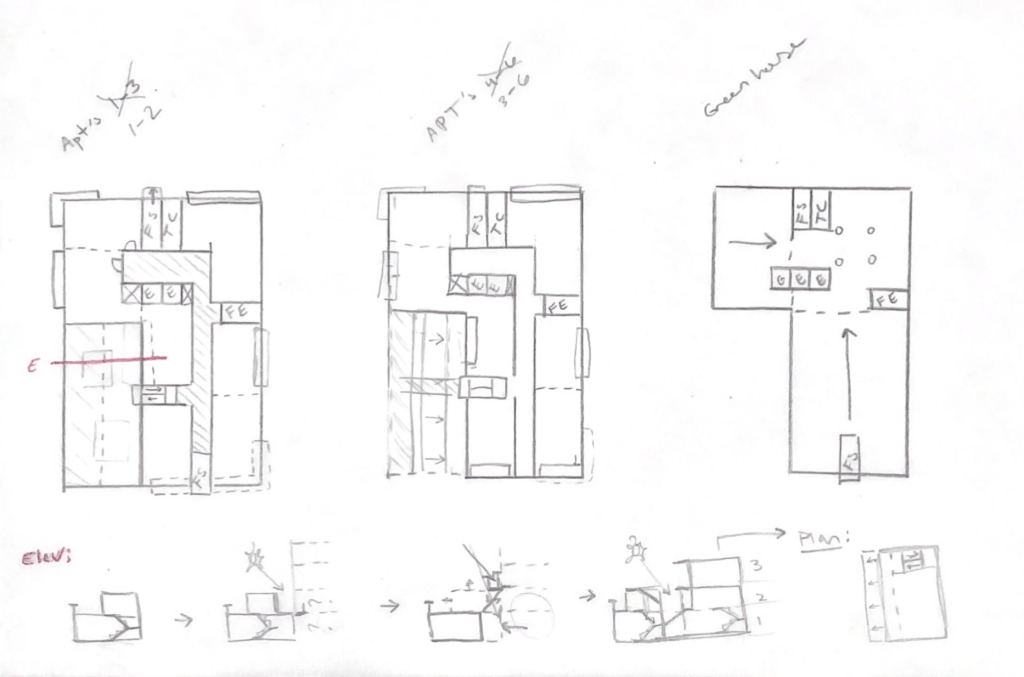

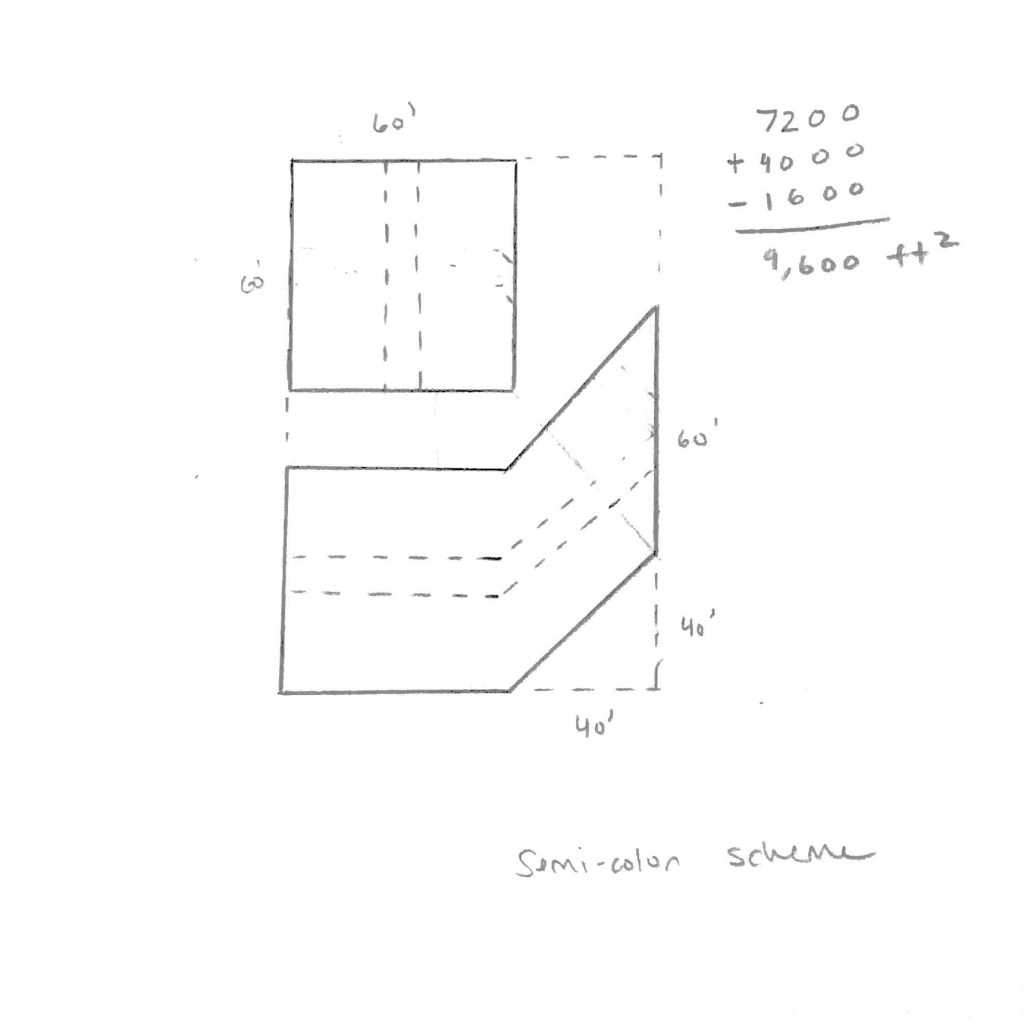

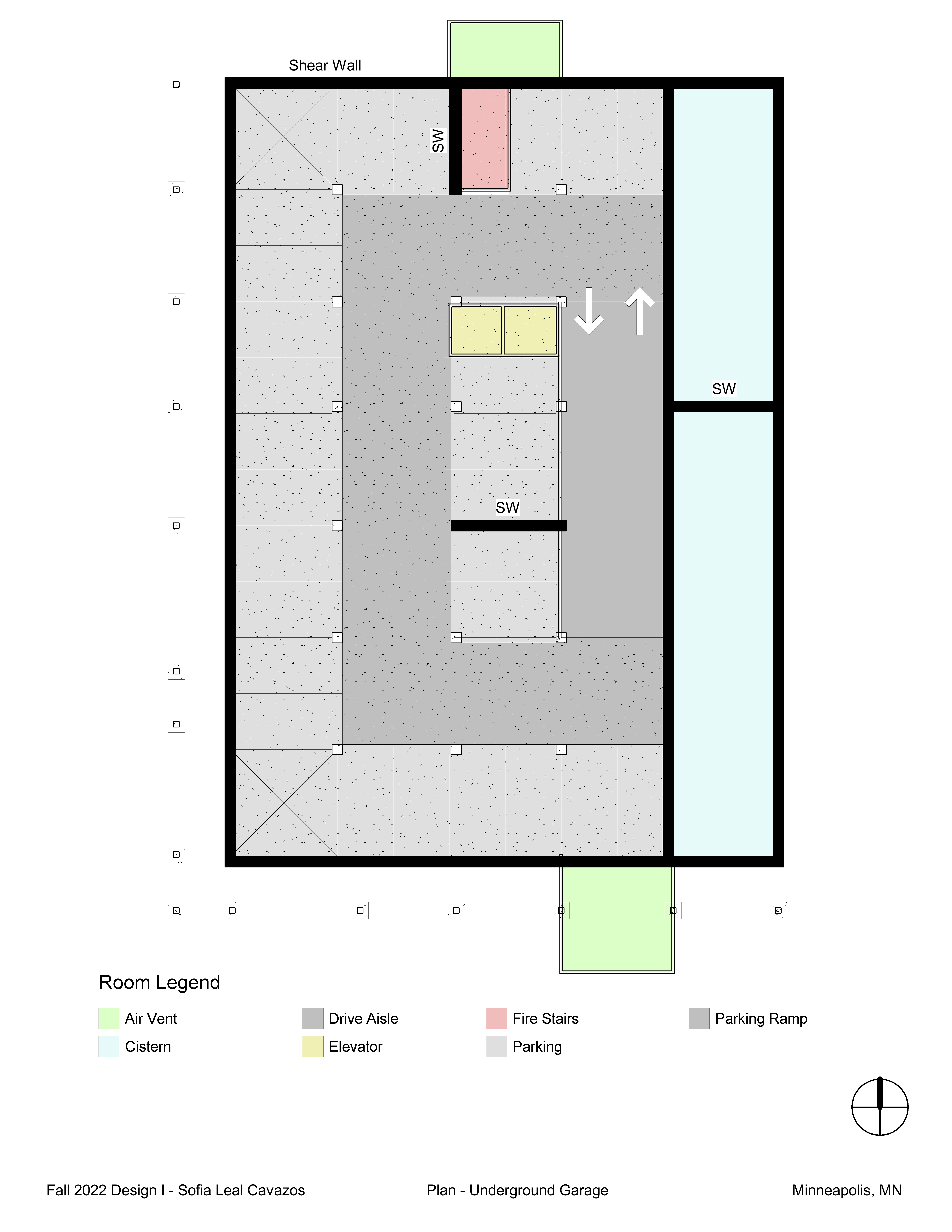

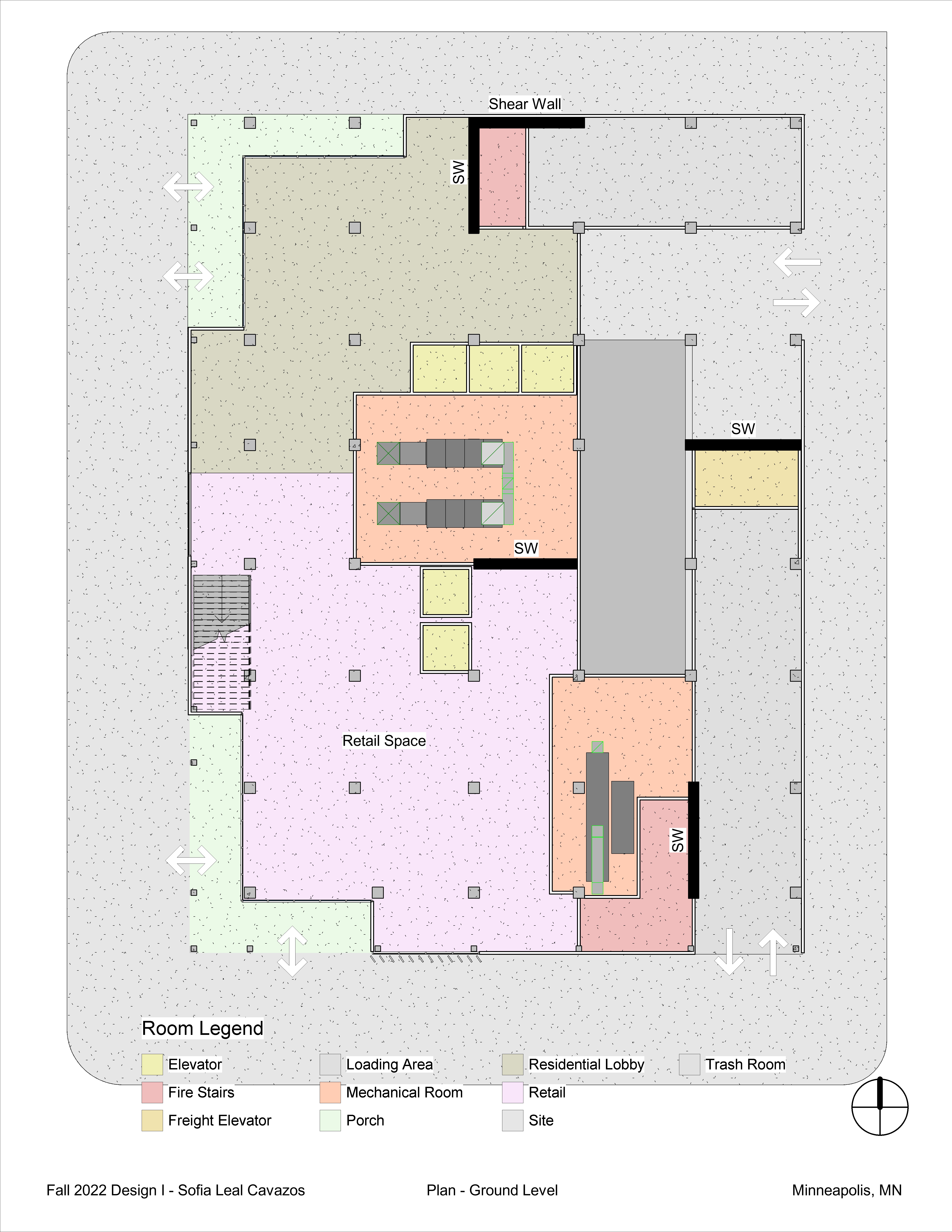

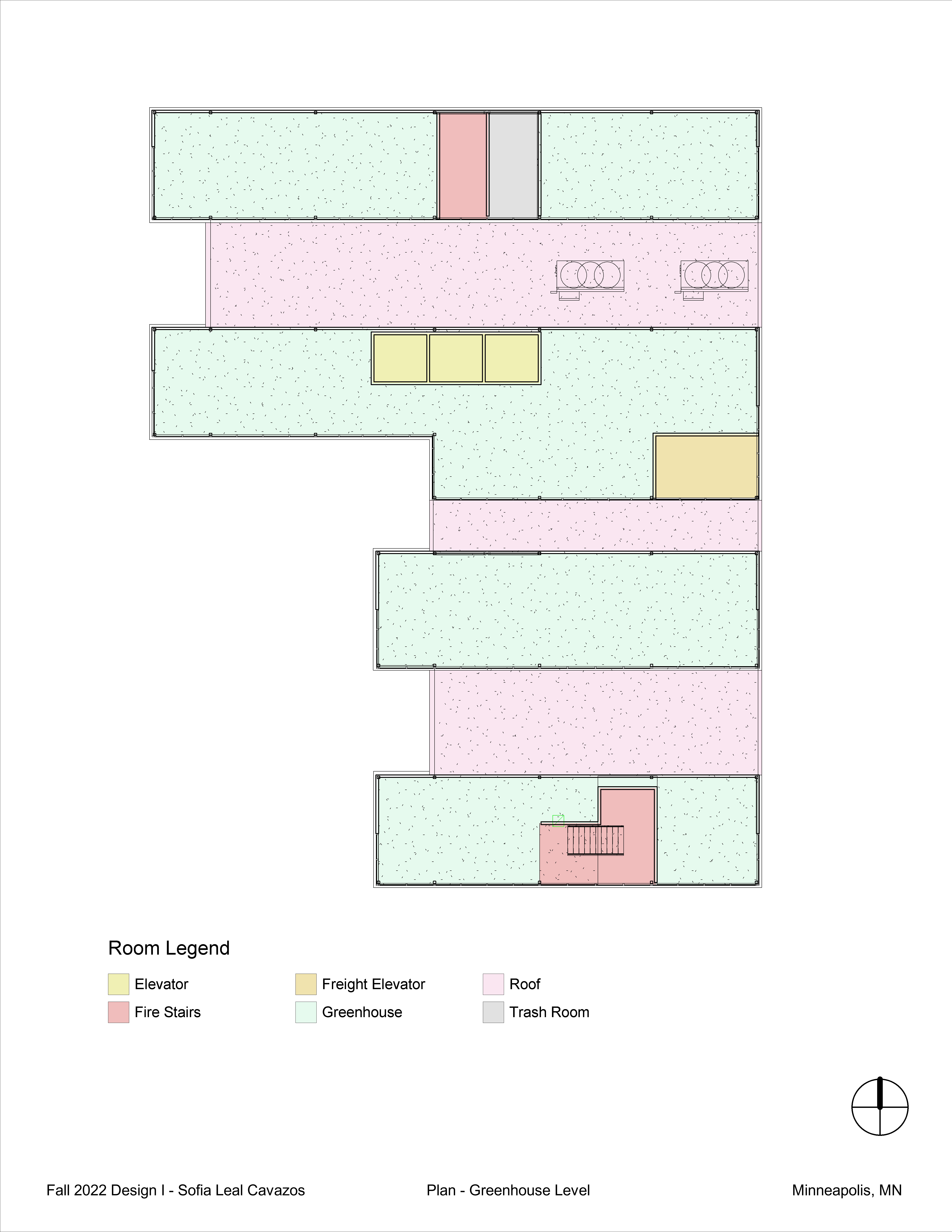

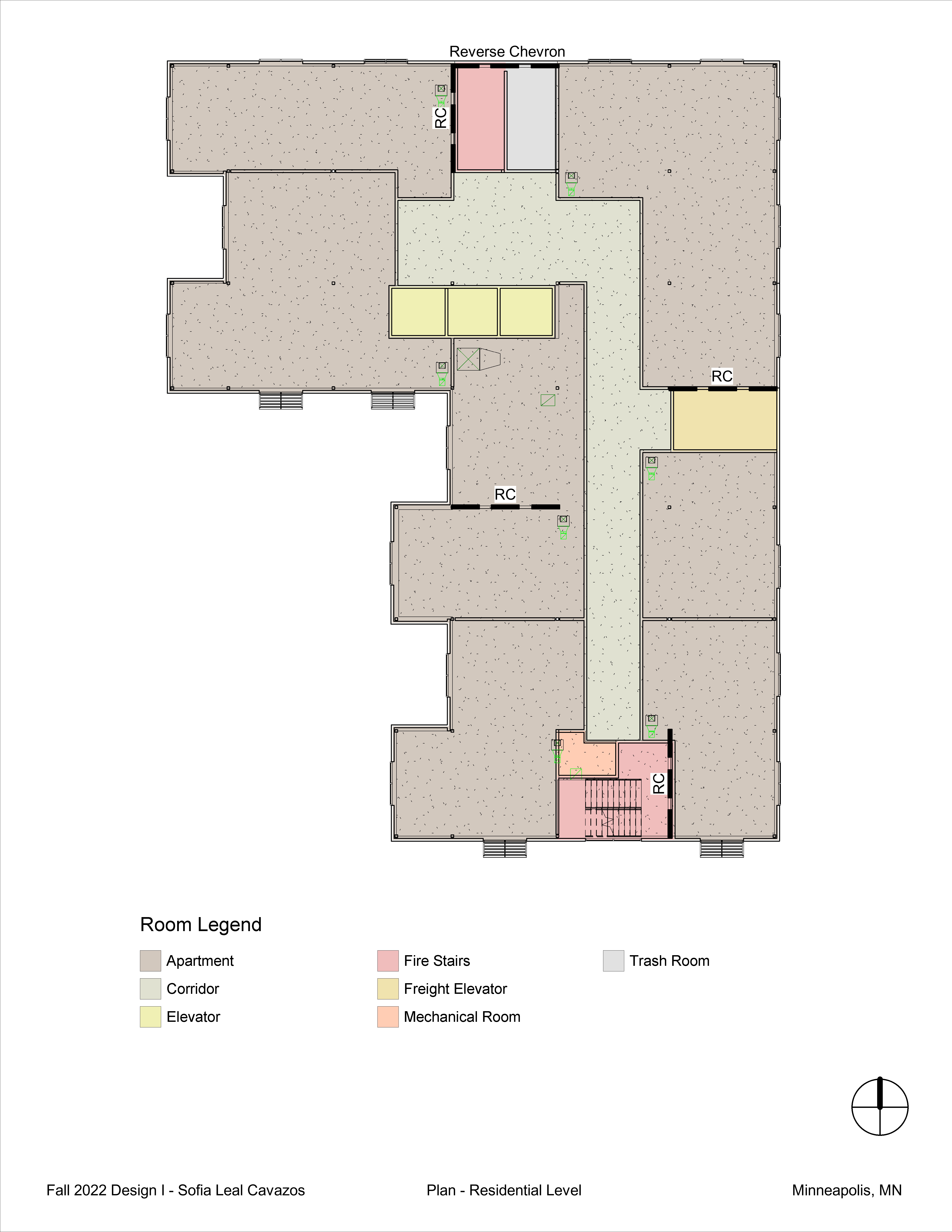

Annotated sketches showing the progression of the floor plan design.
